15.36kWh Up to 6 units in parallel AC-coupled Design
PBS-SG-AC15/5 is an energy storage system designed for AC coupled scenarios. PBS-SG-AC15/5 is coupled with the existing solar system at the main panel. At the same time, PBS has a backup power supply function, which can connect the essential loads during the grid outage.
The system can be used to promote the self-consumption ratio of existing PV system and provide Backup power during grid outage.
Indoor/outdoor，
<60dB noise
LFP battery,
6000 times cycle life,
IP 54
Supports 6 units in parallel
total capacity up to 92kWh
Appearance and display
can be customised
| Product Model | PBS-SG-AC15/5 |
| Module Rated Capacity | 5.12kWh |
| Total Capacity | 15.36kWh(3 Modules) |
| Parallel Number | Up to 6 |
| Rated Output Power | 5000W |
| Coupled Mode | AC Coupled |
| Grid Connection Type | Single Phase |
| Appearance(W*H*D) | 1604*663*203mm |
| Inverter Module(W*H*D) | 466.5*306*118.5mm |
| Battery Module(W*H*D) | 586.5*386*133.5mm |
| Weight | ~230kg |
| Designed Life | 10 years |
| Cycle Life | ≥6000 cycles |
| Ingress Protection | IP54 |
| Module Installation Method | Plug and Play |
| Certification | UN38.3,CE,IEC62619,EN50549,VDE4105 |

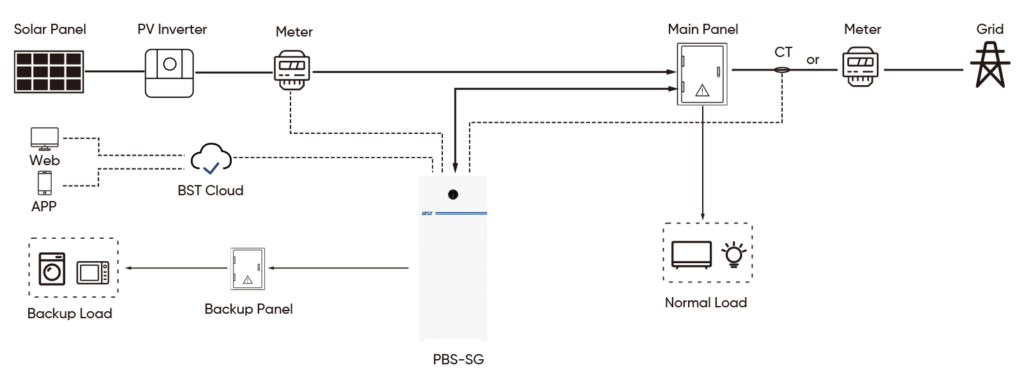

PBS-SG-AC15/5 is coupled with the existing solar system at the main panel. At the same time, PBS has a backup power supply function, which can connect the essential loads during the grid outage.
