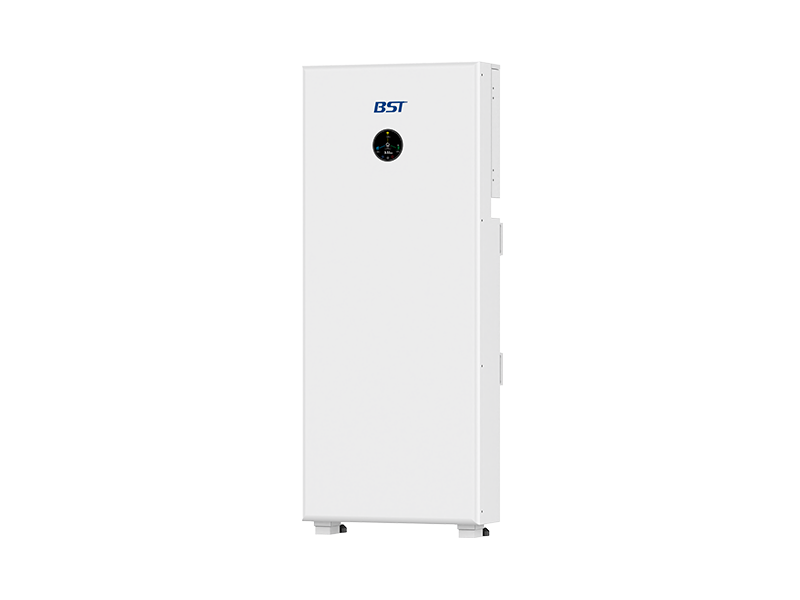

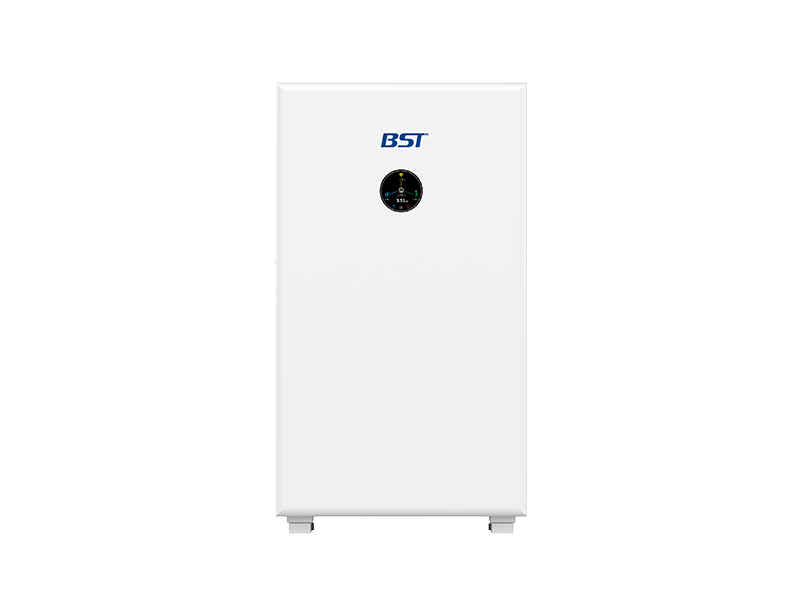

All-In-One ESS(US)

PBS-DG

5.12kWh/10.24kWh Up to 4 units in parallel IP67

PBS-DG is a versatile, all-in-one energy storage system available in 5kWh and 10kWh configurations. Engineered for flexibility, it supports both floor-standing and wall-mounting installations to adapt to various spatial requirements.
With a robust IP67 rating, it is fully waterproof and dustproof, built to with stand harsh indoor and outdoor environments. Its integrated, ready-to-deploy design ensures a simple setup, delivering reliable power wherever you need it.

Product Feature

Effortless Installation

Support wall-mounted，
floor-standing installation

IP67 Protection

Enhanced durability with
IP 67 rating
can be placed outdoors

Flexible Expansion

All-In-One design
supports 4 units in parallel
total capacity up to 20.48kWh/40.96kWh

Smart Communications

Support WiFi/RS485/CAN
communication

Technical Specifications

Product Model	PBS-DG-AC5	PBS-DG-AC10
Rated Capacity/Energy	100Ah/5.12kWh	200Ah/10.24kWh
Cycle Life	6000 times(80%)DOD	6000times(80%)DOD
Nominal AC Output Power	3000W	5000W
Dimensions(WHD)	5801000205mm	5801400205mm
Weight	~105kg	~150kg
Ingress Protection Degree	IP67(Battery pack&Inverter), IP56(Wiring) NEMA3R	IP67(Battery pack&Inverter), IP56(Wiring) NEMA3R
Designed Life	10 years	10years
Max.Charge/Discharge Current	80A/80A	120A/120A
Coupling	AC Coupled	AC Coupled
Safety&EMC，Fire Test&Transportation Certification	UL9540A&UN38.3,ANSI/CAN/UL Std.9540,1973;CSA Std.C22.2,UL Std.1741,1741SB;FCC Part15B	CE-EMC+RED，IEC62619，IEC62109，UN38.3
Grid Certification	IEEE Std.1547,IEEE 1547.1;Hawaiian IEEE Std.HECO SRD-IEEE-1547.1	VDE4105，VDC0124，EN50549，G98/G100，RD413，RD647，UNE217002，C10/11

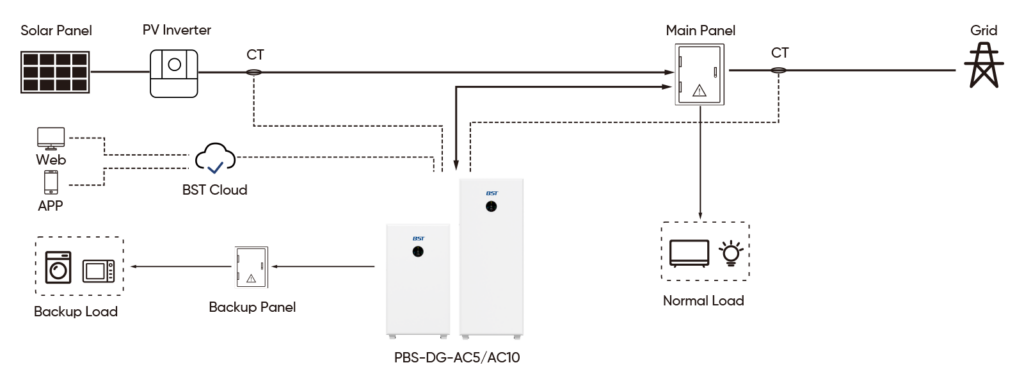

How All-In-One ESS Work?

PBS can be easily connected to the home main power distribution box, coupled to the photovoltaic inverter and the power grid, and charged or discharged as needed. Using the attached CT sensor, PBS can measure photovoltaic power generation and grid power consumption in real time, and this information will be displayed together with the PBS operation information in the client APP or cloud dashboard. The PBS also supports the off-grid operation mode. Connecting critical home loads, such as lighting, refrigerators, kitchen appliances, and water pumps, to the backup interface of PBS to ensure that these devices can still get reliable power supply when the grid failure.

Mount It Your Way: Freedom & Flexibility

Offering both wall-mount and floor-standing options for a professional installation in any space

PBS-DG-AC10

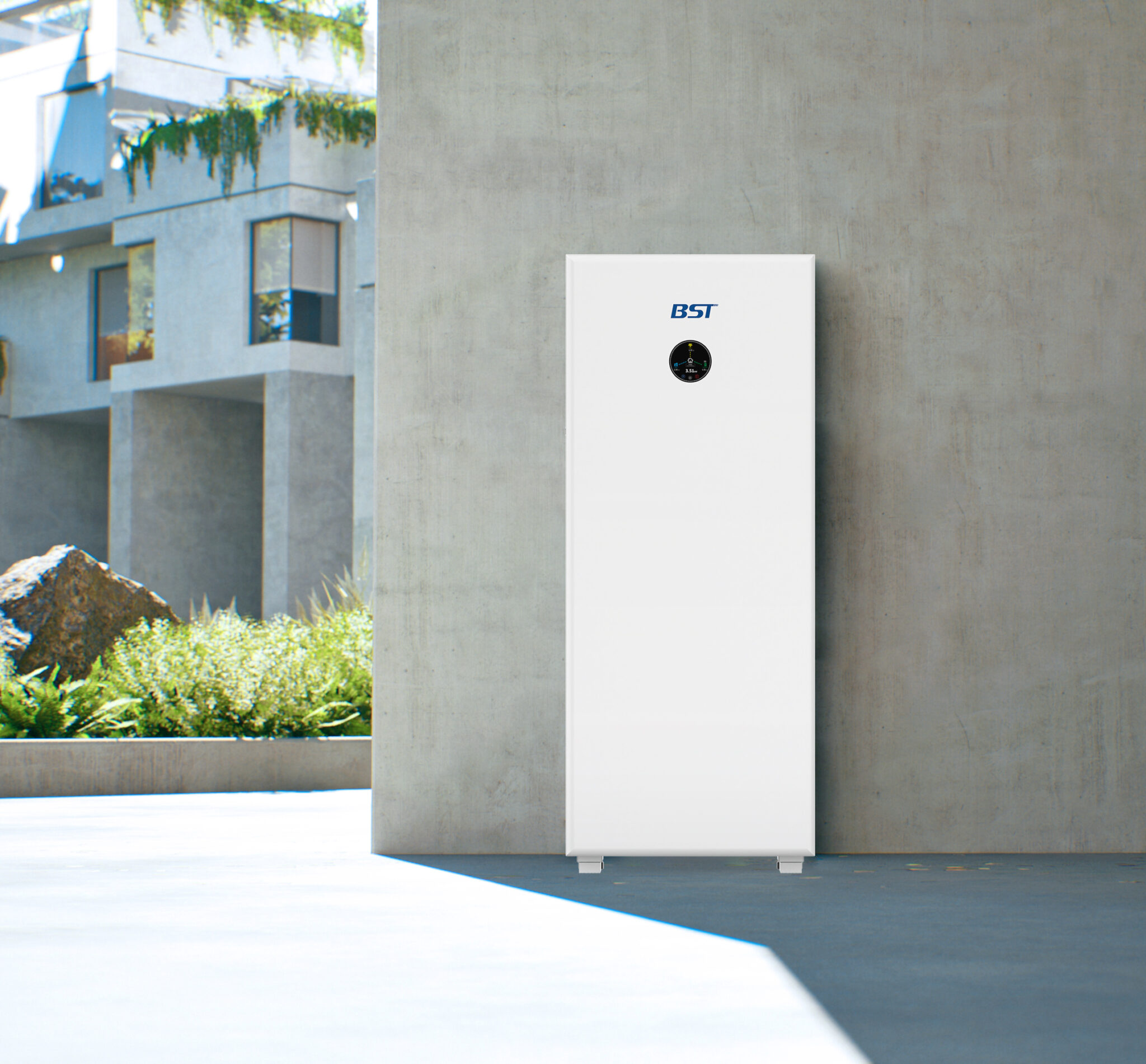

Floor-standing

If you own a villa or are building a new home and wish to achieve energy self-sufficiency or even complete off-grid operation, requiring a large energy storage capacity (e.g., 20 kWh or more):
Prioritize floor-standing units. Their expandability and large capacity are unmatched by wall-mounted units. You can plan for them in a utility room or garage corner during the design phase.
PBS-DG-AC5

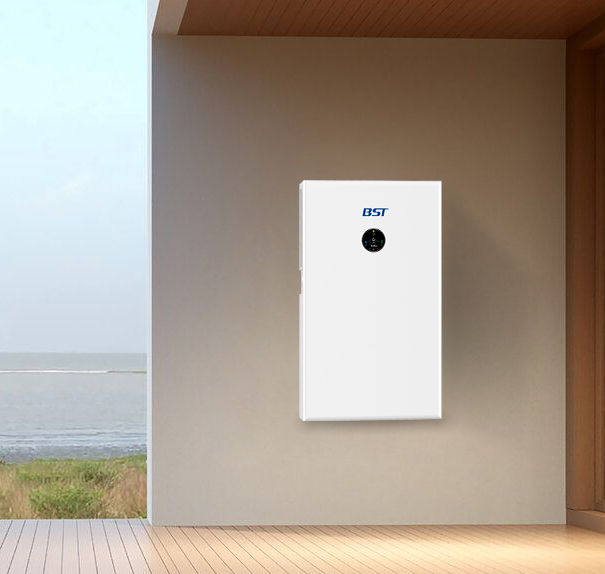

Wall-mounted

If you are a typical household user with limited living space, and simply want to add a few to over ten kilowatt-hours of backup power to your existing solar system: Consider a wall-mounted unit. It meets your needs well, doesn't take up much space, and offers flexible installation.

Contact

Need to customise your programme? Contact us to start your project journey!

All enquiries will be responded to within 12 hours.
