5.12kWh/100Ah Up to 15 units in parallel
Customers are increasingly seeking energy storage solutions that offer high power output while minimizing physical space usage, particularly in residential and commercial settings where space is at a premium. The trend toward compact yet powerful energy storage systems aligns with the growing need for efficient, scalable energy solutions.
Appearance, specifications, capacity, and display method
can be customized.
Small size
pre-integrated design
flexible deployment

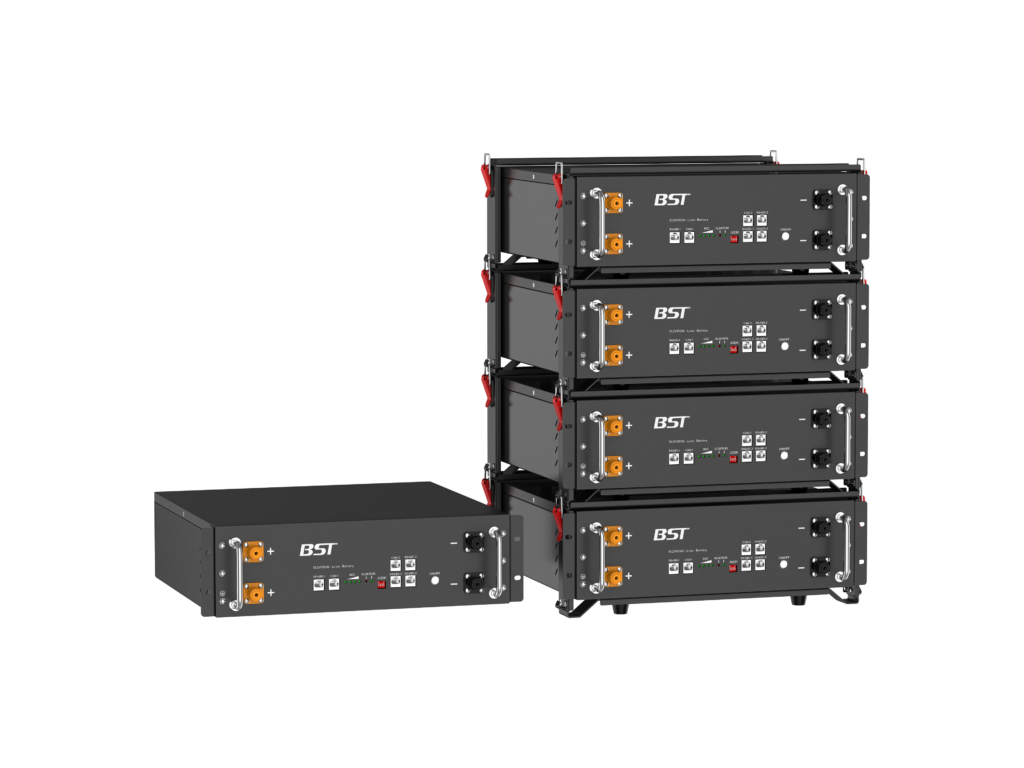

Modular design
supports 15 units in parallel
total capacity up to 76.8kWh
Built-in perfect BMS
to monitor the system
in real time
| Product Model | MD48-100-3U |
| Nominal Energy | 5.12kWh |
| Nominal Capacity | 100Ah |
| Scalability | Max.15 in parallel(76.8kWh) |
| Dimension(W*D*H) | 440*420*133mm |
| Weight | 540*375*307mm |
| Weight | ~44.2kg |
| Designed Life | 10 years |
| Cycle Life | ≥6000 cycles |
| Communication Interface | RS485,CAN,WiFi(optional) |
| Certification | Un38.3,IEC62619,UL1973,EN61000-6-1,EN61000-6-3 |
| Compatible Inverter | BST,Victron,Goodwe,Solis,Sofar,Deye,Voltronic,PYLON |

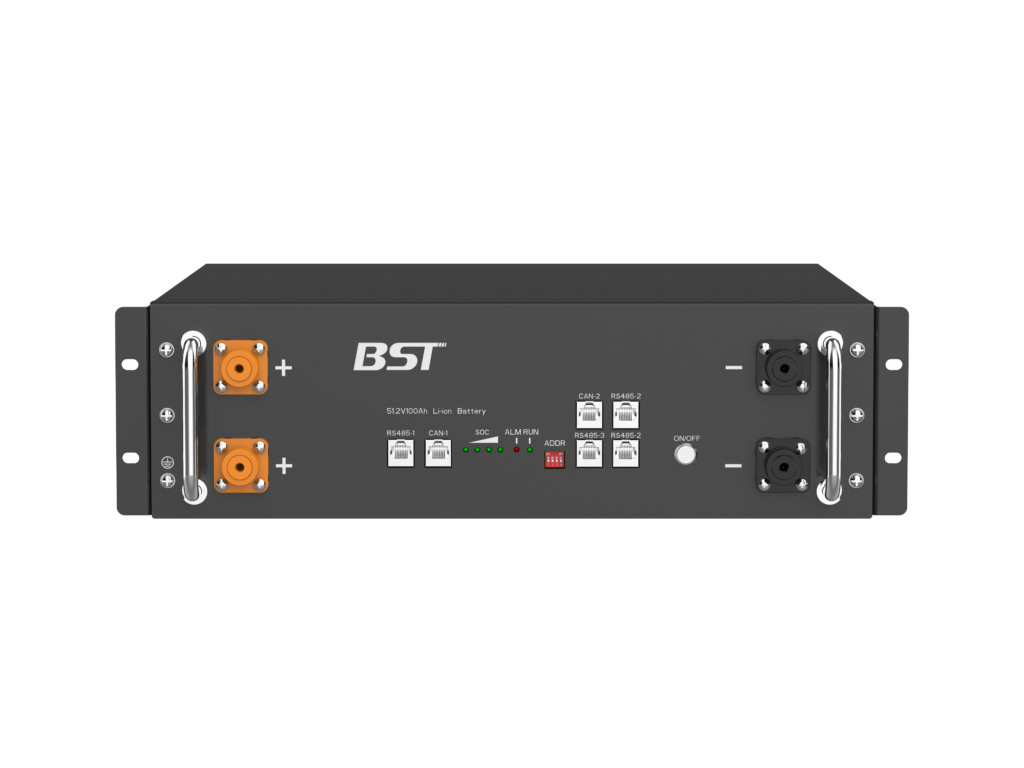

Achieve scalable energy independence with our 51.2V 100Ah rack-mounted battery.
The system is modular, allowing up to 15 units to be connected in parallel to tailor the capacity for your needs, from essential loads to full home backup.
Featuring a standard rack design, it installs easily and discreetly, maximizing space efficiency while blending into your home.
In remote areas, rack-mounted batteries are more than just energy storage devices; they are transformative infrastructure. Through their modularity, ease of maintenance, and high adaptability, they convert unstable renewable energy sources into reliable, economical, and clean electricity, significantly boosting economic and social development and improving the quality of life in remote regions.
Rack batteries empower modern farms: they slash energy costs,
ensure uninterrupted power for vital operations, and turn solar energy
into a reliable 24/7 resource,paving the way for a more resilient and profitable agricultural business.
Stackable rack batteries are ideal for new home energy storage installations. With high energy density and multiple mounting options, stackable rack batteries save space and are suitable for various installation environments. Their modular design accommodates changing load demands, meeting your current and future energy needs.
Our easy-to-use interface offers an average one-day upload-to-quote lead time (simple design quoting in as fast as one hour).
Work with our team of engineering experts that offer technical design guidance and can inform you on manufacturability and cost-saving opportunities.
With more than 30+ automated machines all under one roof, we’re dedicated to continuously evolving our capabilities.
High-quality products delivered within our thirty-day standard lead time.
