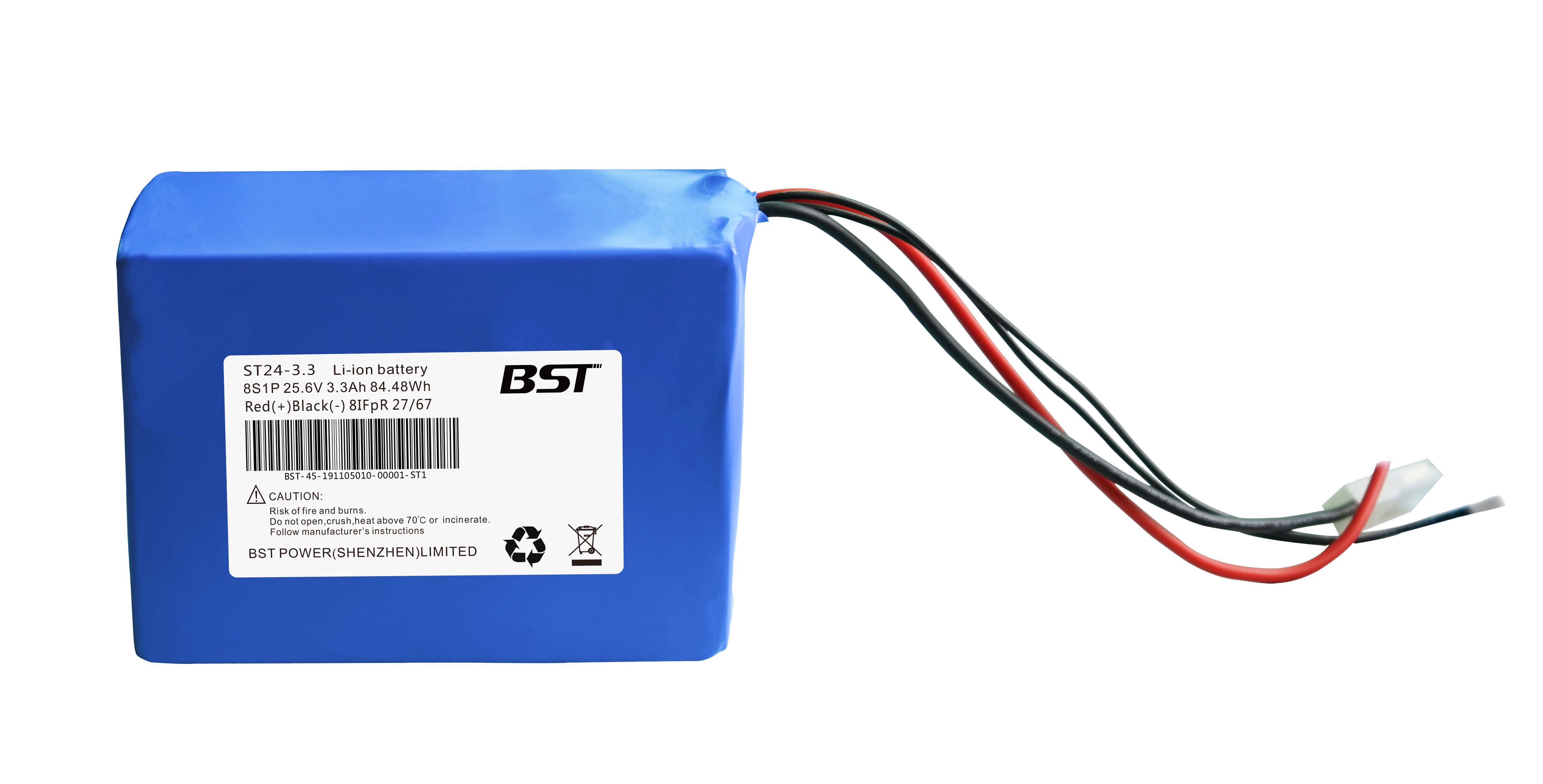

Solar Tracker Battery-E3400 8S1P

Solar Traker Battery-ST24-3.4 E3400 8S1P

$29.9

Shipping calculated at checkout

Solar Traker Battery Technical Specification

Product Model	ST24-3.35-WT	ST24-6.7-WT	ST24-3.3	ST24-6.8
Nominal Voltage	25.6V	25.6V	25.6V	25.6V
Nominal Capacity	3.35Ah	6.7Ah	3.3Ah	6.6Ah
Usable Capacity	85.76Wh	171.52Wh	84.48Wh	168.96Wh
Dimensions	1095777mm	2165777mm	1095777mm	2165777mm
Weight	0.72Kg	1.44Kg	0.72Kg	1.44Kg
Charging Voltage	28.4V～29.2V	28.4V～29.2V	28.4V～29.2V	28.4V～29.2V
Charging Current	0.67A	1.34A	0.66A	1.32A
Discharging Voltage	18.4～29.2V	18.4～29.2V	20～29.2V	20～29.2V
Discharging Current	6.7A	12.5A	6.6A	12.5A
Peak Discharging Current	15.0A(5ms)	15.0A(5ms)	15.0A(5ms)	15.0A(5ms)
Cycle Life	＞2000 (25℃ 80%DOD＠0.2C)	＞2000 (25℃ 80%DOD＠0.2C)	＞2000 (25℃ 80%DOD＠0.2C)	＞2000 (25℃ 80%DOD＠0.2C)
Certification	CE/UN38.3	CE/UN38.3	CE/UN38.3	CE/UN38.3
