25.6V 3.3Ah 84.48Wh
Solar trackers are the preferred solution for maximizing power generation and project economics, especially suitable for large power plants built in open areas. Through intelligent mechanical movement, they elevate the efficiency of solar energy utilization to a new level.

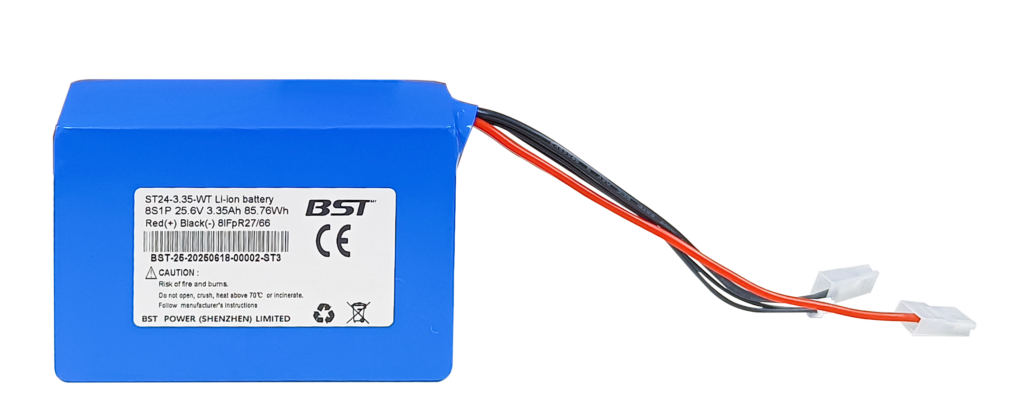

| Product Model | ST24-3.35-WT | ST24-6.7-WT | ST24-3.3 | ST24-6.8 |
| Nominal Voltage | 25.6V | 25.6V | 25.6V | 25.6V |
| Nominal Capacity | 3.35Ah | 6.7Ah | 3.3Ah | 6.6Ah |
| Usable Capacity | 85.76Wh | 171.52Wh | 84.48Wh | 168.96Wh |
| Dimensions | 109*57*77mm | 216*57*77mm | 109*57*77mm | 216*57*77mm |
| Weight | 0.72Kg | 1.44Kg | 0.72Kg | 1.44Kg |
| Charging Voltage | 28.4V～29.2V | 28.4V～29.2V | 28.4V～29.2V | 28.4V～29.2V |
| Charging Current | 0.67A | 1.34A | 0.66A | 1.32A |
| Discharging Voltage | 18.4～29.2V | 18.4～29.2V | 20～29.2V | 20～29.2V |
| Discharging Current | 6.7A | 12.5A | 6.6A | 12.5A |
| Peak Discharging Current | 15.0A(5ms) | 15.0A(5ms) | 15.0A(5ms) | 15.0A(5ms) |
| Cycle Life | ＞2000 (25℃ 80%DOD＠0.2C) | ＞2000 (25℃ 80%DOD＠0.2C) | ＞2000 (25℃ 80%DOD＠0.2C) | ＞2000 (25℃ 80%DOD＠0.2C) |
| Certification | CE/UN38.3 | CE/UN38.3 | CE/UN38.3 | CE/UN38.3 |
