PB2-51.2V 5kWh Energy Storage Battery System

PB2-5.12kWh BESS, used with single-phase and three-phase inverters, can store the energy generated by roof photovoltaic panels for use when needed. It contributes to the goal of energy self-consumption.

Highlights

CE Logo
UL Logo
DNV-GL logo
MSDS logo

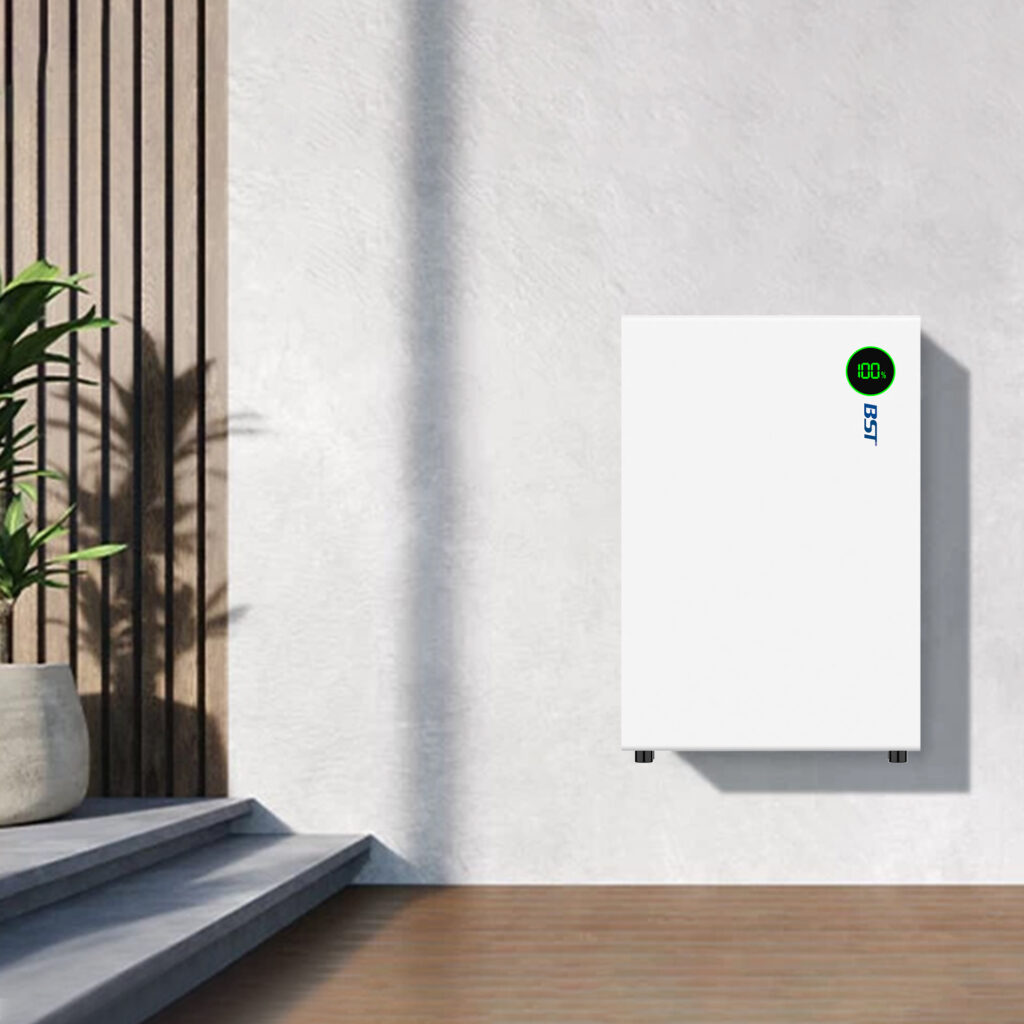

The Perfect Wall Mounted Battery of Strength & Safety

Dimensional Stability

MD48-50-2U is an energy storage battery

Dimensional Stability

MD48-50-2U is an energy storage battery

Dimensional Stability

MD48-50-2U is an energy storage battery

Specifications

General

Nominal Energy5.12 kWhUsable Energy5.12 kWh
ScalabilityMax. 10 in parallel (51.2kWh)Dimension (WxHxD)480x700x145 mm
Weight~58kgDesign Life10 Years

Electrical

Nominal Voltage51.2 VOperating Voltage Range43.2 ~ 56.8 V
Max. Power5 kWPeak Discharge Power10 kW for 1 sec

Operation

Charge Temperature0 ~ 50 °CDischarge Temperature-10 ~ 50 °C
Storage Temperature-20 ~ 45 °CHumidity5% ~ 96% RH (No Condensation)
Altitude≤ 4000mIngress ProtectionIP65
Communication InterfaceCAN, RS485 (Optional WIFI, BLE)CertificationUN38.3, EN 61000-6-1, EN 61000-6-3, IEC62619
Compatible InverterBST/Deye/Goodwe/Victron/Solis/Sofar
